Product: |

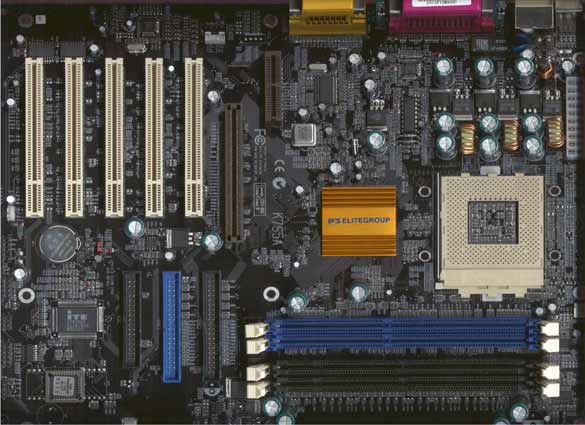

ECS ATX K7S5A (Thunderbird & Duron) |
|
|
|
|
Price: |
$ 80.04 |
|
|
|
|
Item Number: |
MB141 |
|
|
|
|
Specifications: |
Supports full series of Athlon/Duron CPU including the future Athlon processors
266Mhz Front Side Bus
SiS® 735 System Chipset
AC97 Audio Codec
Two 184-pin DDR SDRAM (DDR200, DDR266) or
Two 168-pin 3.3V SDRAM (PC100, PC133)
5 PCI slots, 1 4X AGP slot, 1 AMR slot
PS/2 keyboard and PS/2 mouse connectors
Dual USB Ports and LAN connectors
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
2 Serial Ports, 1 Parallel Port
The K7S5A has a Socket-A processor socket for an AMD® K7 type processors. You can install any one of these processors on the mainboard. The mainboard supports front-side bus speeds of 200/266MHz.
This mainboard uses the SiS® 735 chipset which supports a 4X AGP slot for highly graphics display, DDR interface and Ultra DMA 33/66/100 function, provides outstanding high system performance under all types of system operations. The mainboard has a built-in AC97 Codec, provides an AMR (Audio Modem Riser) slot to support Audio and Modem application, and has an built-in 10BaseT/100BaseTX Network Interface. |
|
|
|
|
|
|
-
|
|
